Overall exterior
rendering of the hotel

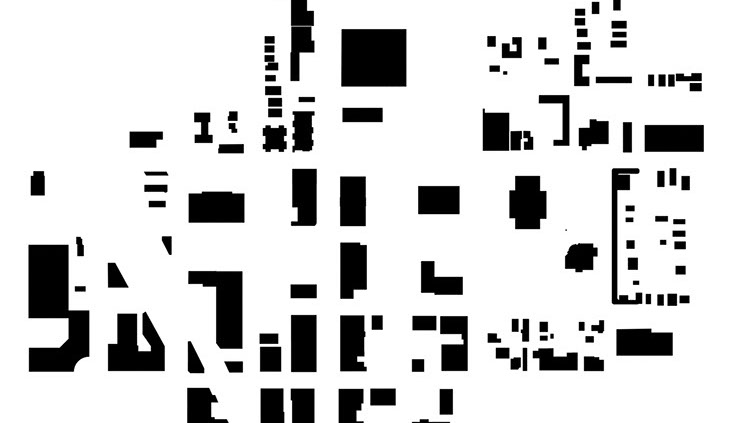

Existing figure ground
study of the master plan area

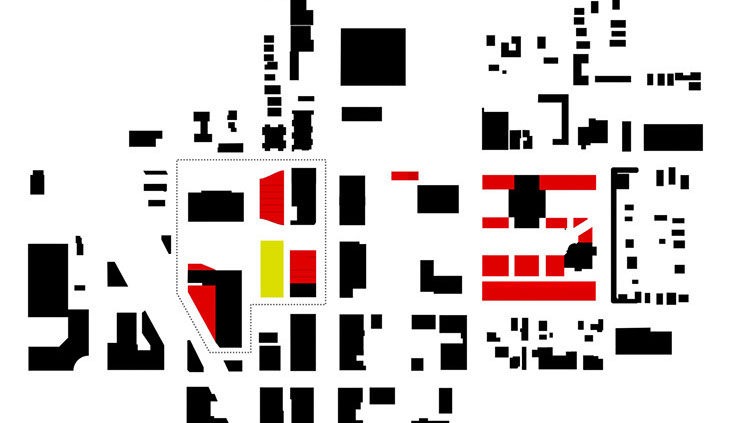

Figure ground study of the
proposed master plan changes

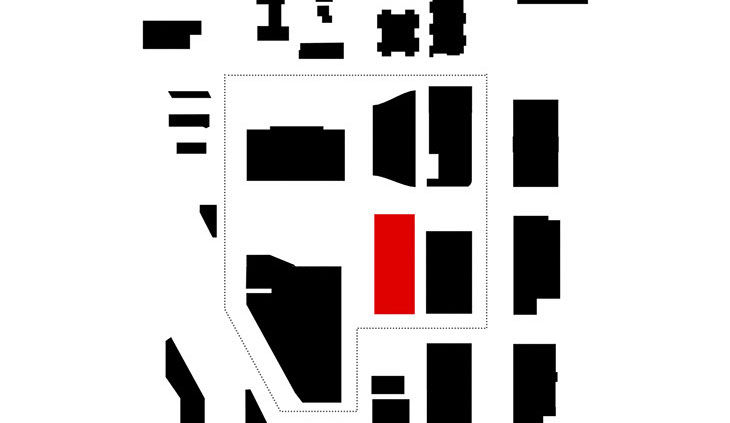

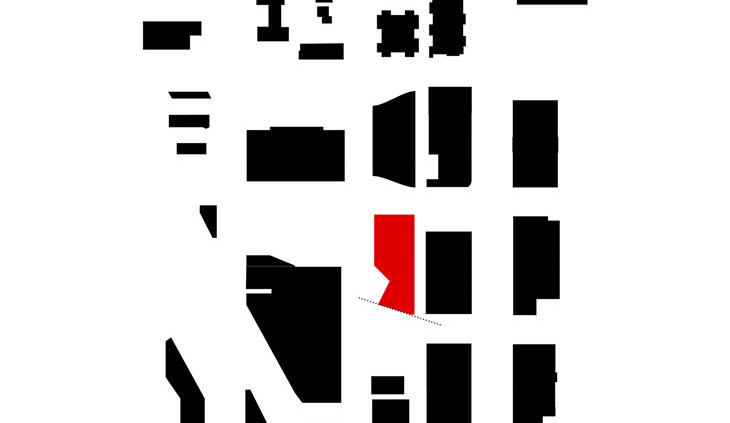

Figure ground study
of the hotel site
Parking access being
subtracted from the buildable area
Pedestrian access to the parking deck
being subtracted from the buildable area

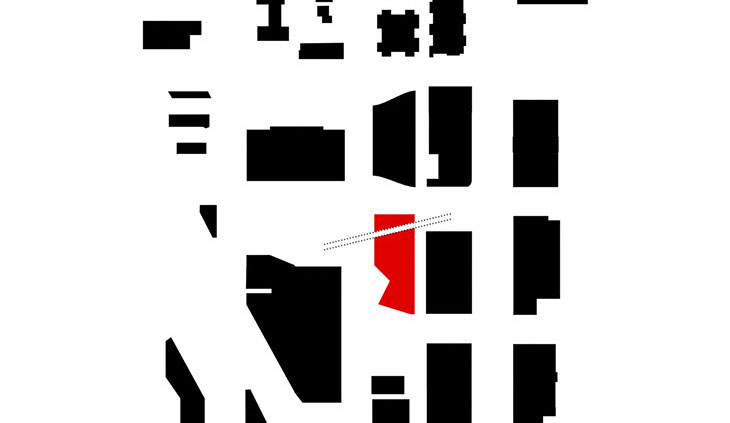

Further pedestrian access routes being
removed from the buildable area on the lower level

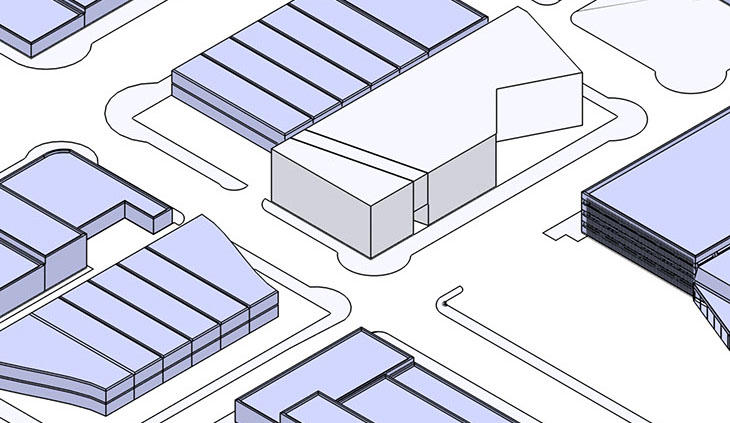

Initial usable massing

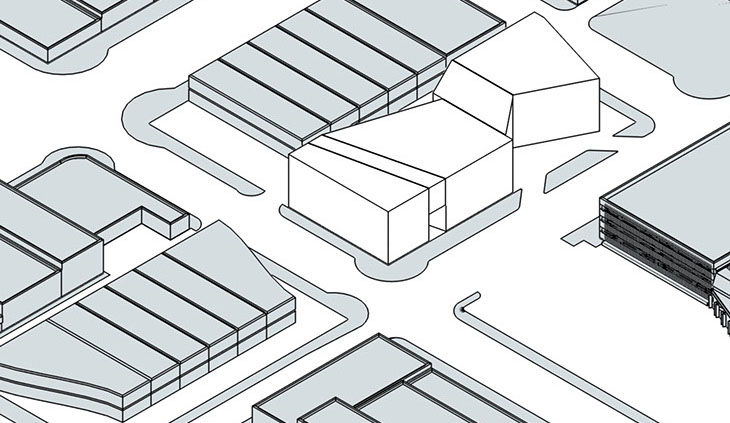

Massing changes made to accommodate
access to the support areas of the building

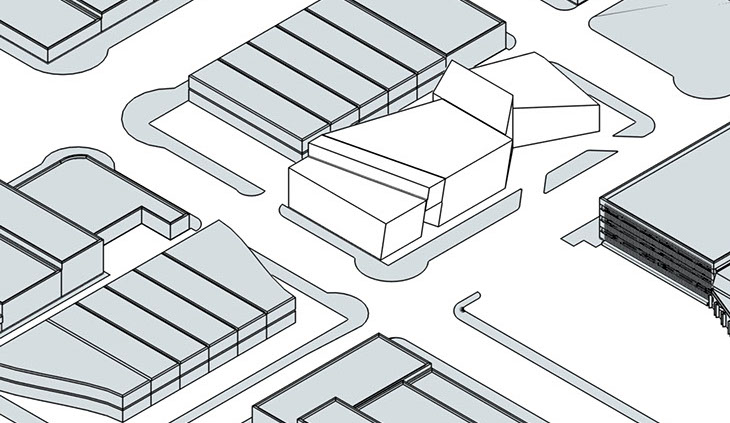

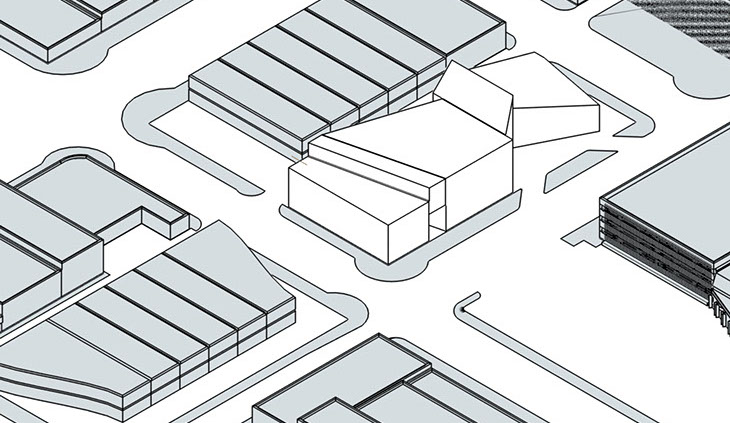

Massing changes to allow optimal
lighting for the hotel room spaces
Lower level pulled back to allow
for wider pedestrian walking paths

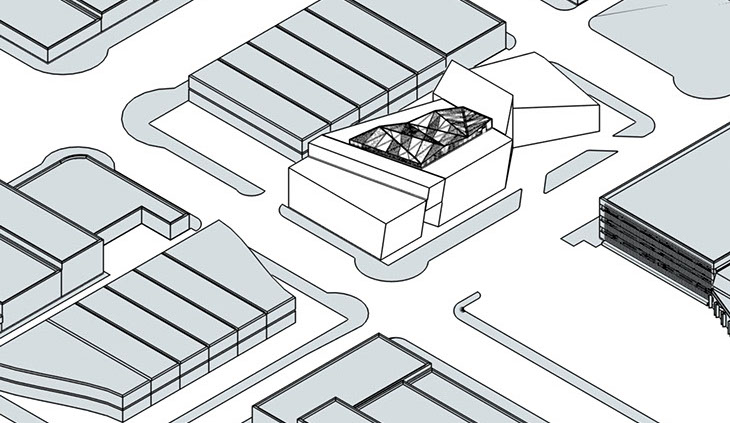

Addition of central atrium

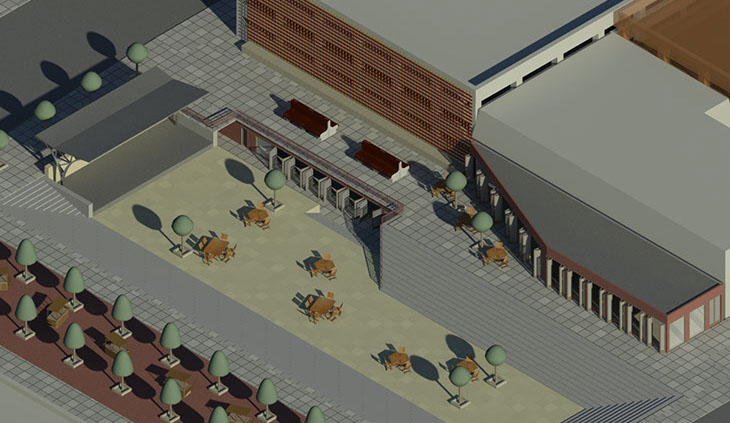

Music park design located
across the street from the hotel

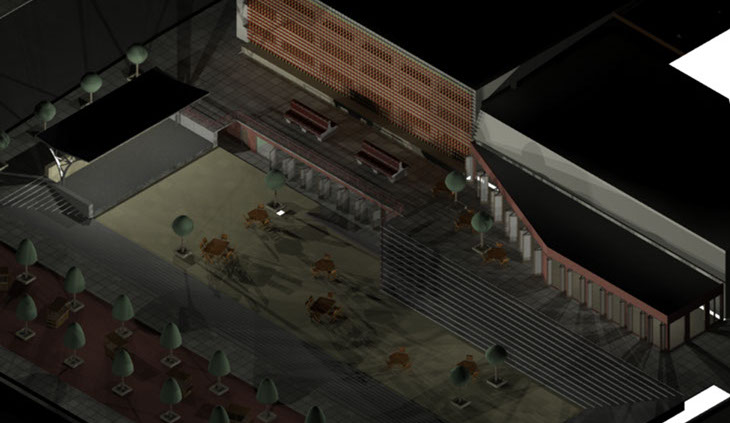

Music park design at night

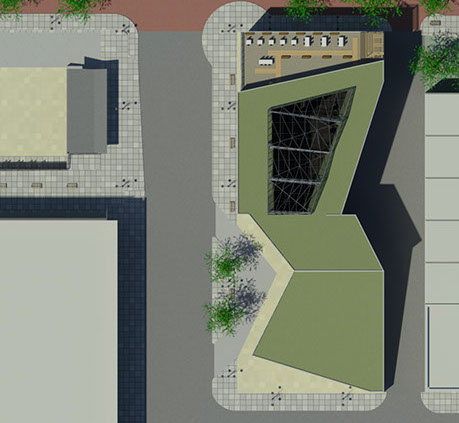

Aerial site rendering

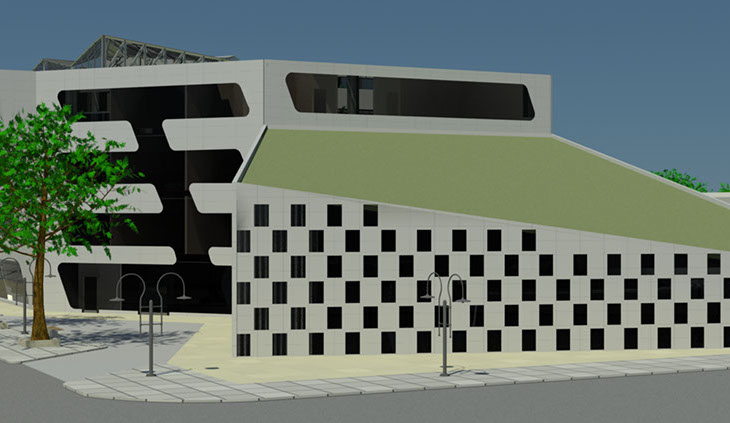

Perspective of conference
and gym facilities
Aerial perspective of the hotel

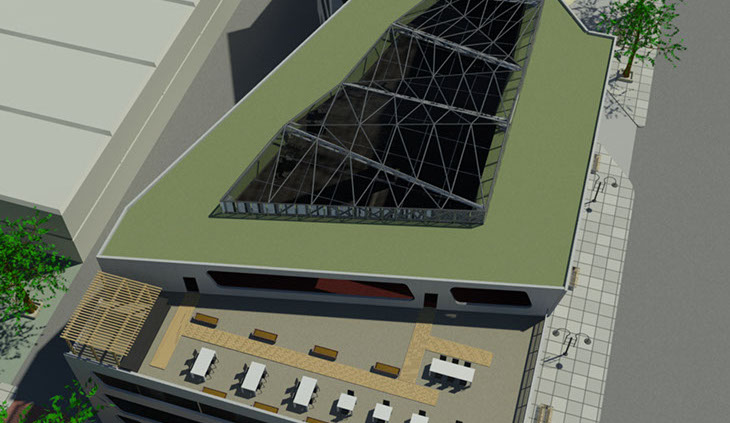

Aerial perspective showing the terrace
Overall perspective rendering
<
>
Main St Hotel – Royal Oak, MI
Project Status – Concept
Scope – Schematic Design | Design Development | 3d Rendering
Downtown Royal Oak is lacking one key element in its well-functioning urban core, a high-end hotel. Royal Oak has become a destination within the metro Detroit area and there is no hotel in its downtown core. This project was developed as part of a larger master plan that including closing off streets to be utilized as pedestrian access only. The hotel was located one block west of Main St. and the site was selected because of its adjacency to a large municipal parking deck. The project developed into a boutique hotel that would support small conference and gym facilities, a restaurant and bar, and more than 60 rooms.
